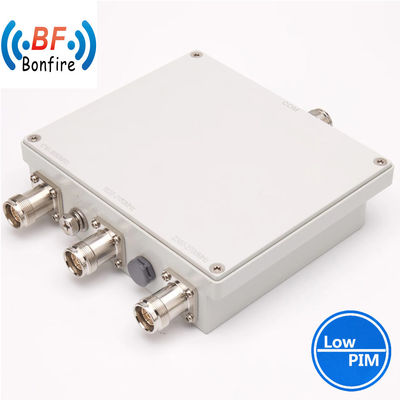

RF Single Unit Duplexer Combiner Grey 1710-1880/1920-2690MHz 7/16DIN Female Connector
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | HL-1727/2327-427701(423301) | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Interface: | 4.3-10 F / DIN-F |
| Application: | Indoor/Outdoor(IP65) | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 15.00cm * 12.00cm * 10.00cm | Package Gross Weight: | 2.860kg |
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 1710-2170 | 2300-2690 |
| Insertion Loss(dB) | < 0.4 | |
| Isolation(dB) | > 50 | |
| VSWR | ≤ 1.25 | |
| PIM3 (dBc@2*43dBm) | ≤ -160 | |
| Input Power(W) | 200 | |
| Impedance(Ω) | 50 | |
| DC/AISG | By-pass(max. 3000mA) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| RF Connector | 4.3-10F(DIN-F) | |
| Color | Gray | |
| Relative humidity | 5%~95% | |
| Operating Temperature(°C) | -20 ~ +65 | |
| Applications | Indoor/Outdoor(IP67) | |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
