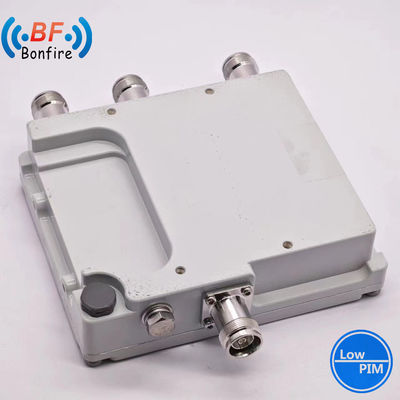

Maximize Your UHF Frequency Band with Triplexer RF Diplexer and DIN Female Connector
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Color: | Grey/Red/Black/Customized | Capality: | Ibs/Das Overall Project Delivery Capability |
|---|---|---|---|
| Interface: | 4.3-10f DIN-F | Application: | Indoor/Outdoor(IP65) |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 18.00cm * 16.00cm * 4.00cm |
| Package Gross Weight: | 1.500kg | ||
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 1710-1880 | 1920-2170 | 2300-2400 | 2500-2700 |
| Insertion Loss(dB) | < 0.4 | |||
| Isolation(dB) | > 50 | |||
| Return Loss(dB) | ≥ 20 | |||
| VSWR | ≤ 1.22 | |||
| PIM3 (dBc@2*43dBm) | ≤ -160 | |||
| Input Power(W) | 200 | |||
| Impedance(Ω) | 50 | |||
| DC/AISG | By-pass(max. 3000mA) | |||
| Lightning protection | 10KA; 10/350μs pulse | |||
| RF Connector | 4.3-10F(DIN-F) | |||
| Color | Gray | |||
| Relative humidity | 5%~95% | |||
| Operating Temperature(°C) | -40 ~ +85 | |||
| Applications | Indoor/Outdoor(IP67) | |||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
