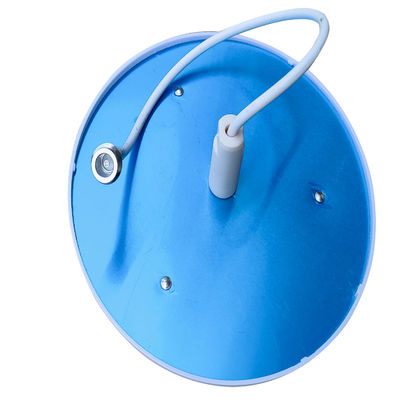

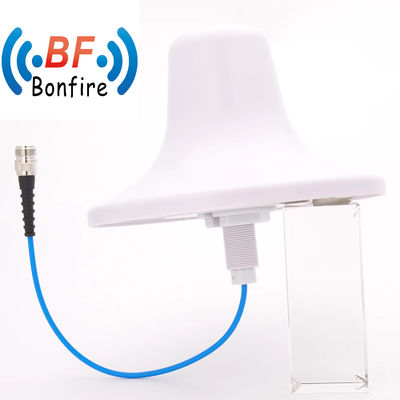

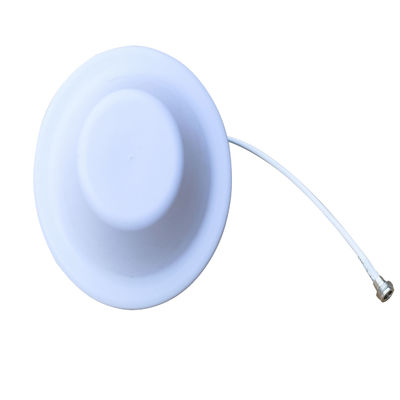

2.500kg Package Gross Weight Indoor Ceiling Mount Omni Antenna 698-4000MHz Durable
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | TX-0740-X703 | Color: | White/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Connector Type: | 4.3-10-F |
| Application: | Indoor | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 25.00cm * 22.00cm * 15.00cm | Package Gross Weight: | 2.500kg |
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-806 806-960 1710-2170 2200-2700 3300-4000 | |
| Gain(dB) | 5.0±0.5 6.0±0.5 7.0±0.5 7.0±0.5 6.0±1 | |
| VSWR | ≤1.8 | |
| Polarization | Vertical | |
| Beam width | Horizontal Vertical | 80 80 65 60 55 |
| 73 70 60 60 30 | ||
| Front-To-Back Ratio( dB) | >5 >8 >10 >15 >10 | |
| PIM, 3rd Order, 2 x20 W(dBc) | -153 | |
| Maximum Power(W) | 50 | |
| Impedance(Ω) | 50 | |
| Connector Type : | 4.3-10-F | |
| Dimensions, HxWxD (mm) | 170x155x50 | |
| Weight, without Mounting Kit(kg) | 0.25 | |
| Mounting Kit | On-wall | |
| Color | White | |
| Relative humidity(%): | < 95 | |
| Operating Temperature(ºC): | -55~60 | |
| Applications: | Indoor | |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
