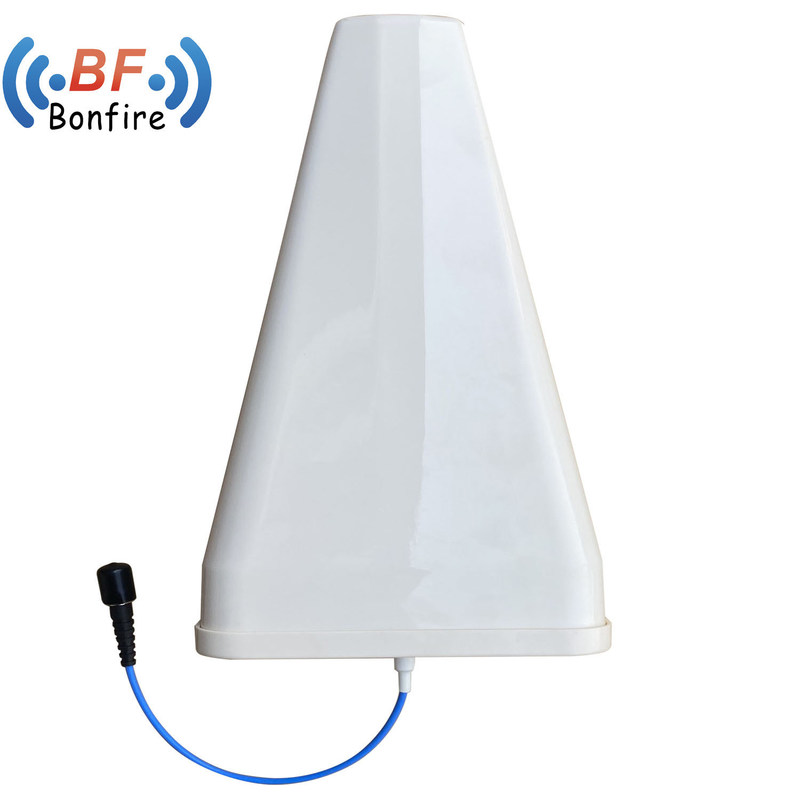

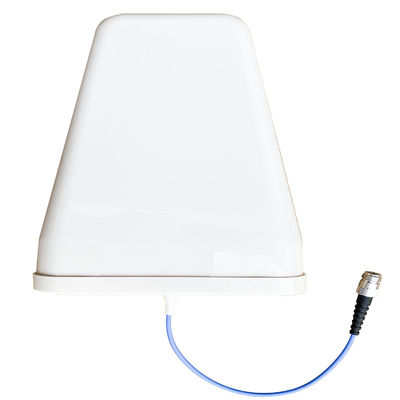

TX-0740-XXXX 698-4000MHz Siso Long Log Periodic Antenna Lpda with Wide Frequency Range
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | TX-0740-XXXX | Color: | White/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Connector Type: | N-F |
| Application: | Indoor | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 25.00cm * 20.00cm * 7.00cm | Package Gross Weight: | 1.800kg |
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Electrical parameters | |
| Frequency Range(MHz) | 698-806/806-960/1710-2700/3300-3800 |
| Gain(dBi) | 8/10 |
| Horizontal-3dB Beamwidth(°) | 75 |
| Vertical-3dB Beamwidth(°) | 45 |
| VSWR | ≤1.8/≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Max Input Protection(W) | 50 |
| Connector | N-Female |
| Lighting Protection | DC Ground |
| Mechanical parameter | |
| Antenna Dimension(mm) | Ф440×207×65 |
| Weight(kg) | 0.96 |
| Cover Material | ABS |
| Pole Diameter (mm) | Ø38- Ø65 |
| Installation | Installation on a pole |
| Rated Wind Velocity (m/s) | 60 |
| Operating Temperature(°) | -40~+60 |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
