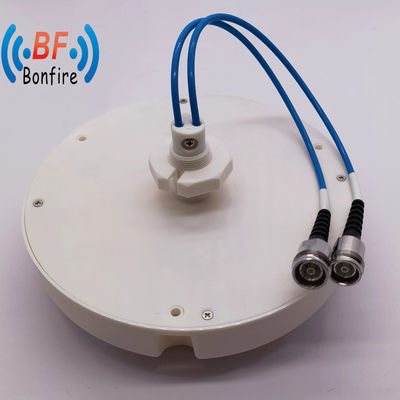

4G 5G LTE Indoor Ceiling Mount WiFi Antenna 3dBi for Home and Office Cell Phone White
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | TX-0740-X7702 | Operating Wavelength: | Microwave |
|---|---|---|---|
| Sturcture Form: | Wire Antenna | Usage: | Ibs/Das/Pdas, Communication Antenna |
| Usage Occasion: | Indoor | VSWR: | <1.5 |
| Frenquency(MHz): | 698-806 806-960 1710-2700 3300-4000MHz | Production: | OEM/ODM |
| Color: | White/Customized | Capality: | Ibs/Das Overall Project Delivery Capability |
| Connector Type: | 4.3-10-F X2 | Application: | Indoor |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 17.00cm * 17.00cm * 11.00cm |
| Package Gross Weight: | 0.510kg | ||
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-806 806-960 1710-2700 3300-4000 | |
| Gain(dB) | 3.0±0.5 3.0±0.5 4.5±1.0 5.0±1.0 | |
| VSWR | ≤1.8 ≤1.5 ≤1.5 ≤1.8 | |
| Polarization | Linear×2 | |
| Horizontal Beam width | Horizontal Vertical | 360 |
| 90 85 45 35 | ||
| Isolation( dB) | >17 >17 >20 >25 | |
| PIM, 3rd Order, 2 x2 W(dBc) | ≤-150 | |
| Maximum Power(W) | 50 | |
| Impedance(Ω) | 50 | |
| Connector Type : | 4.3-10-Fx2 | |
| Size(mm) | Φ182×30 | |
| Antenna Weight(kg) | 0.2 | |
| Mounting Kit | Ceiling, via hole (standard) | |
| Radome Material and Color | ABS, White, RAL9003 | |
| Relative humidity(%): | < 95 | |
| Operating Temperature(ºC): | -55~60 | |
| Applications: | Indoor | |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
