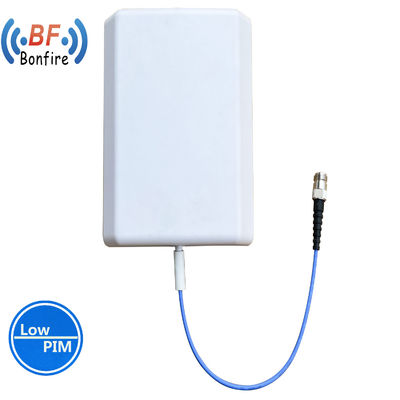

TX-0740-X7701 Directional Panel Antenna Mobile Signal Repeater 4G LTE Antenna OEM/ODM
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | TX-0740-X7701 | Operating Wavelength: | Microwave |
|---|---|---|---|
| Sturcture Form: | Wire Antenna | Usage: | Ibs/Das/Pdas, Communication Antenna |
| Usage Occasion: | Indoor | VSWR: | <1.5 |
| Frenquency(MHz): | 698-806 806-960 1710-2700 2200-2700 3300-4000 MHz | Production: | OEM/ODM |
| Color: | White/Customized | Capality: | Ibs/Das Overall Project Delivery Capability |
| Connector Type: | 4.3-10-F X2 | Application: | Indoor |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 200000PCS/Year | Package Size: | 22.00cm * 20.00cm * 6.00cm |
| Package Gross Weight: | 0.610kg | ||
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-806 806-960 1710-2170 2200-2700 3300-4000 | |
| Gain(dBi) | 5.0±0.5 6.0±0.5 7.0±0.5 7.5±0.5 8.5±0.5 | |
| VSWR | ≤1.8 | |
| Polarization | ±45 | |
| Beam width(deg) | Horizontal Vertical | 80 80 65 60 55 |
| 73 70 60 60 30 | ||
| Front-To-Back Ratio( dB) | >5 >8 >10 >15 >10 | |
| PIM, 3rd Order, 2 x2 W(dBc) | -150 | |
| Maximum Power(W) | 50 | |
| Impedance(Ω) | 50 | |
| Connector Type : | 4.3-10-F×2 | |
| Dimensions, HxWxD (mm) | 320x195x55 | |
| Weight, without Mounting Kit(kg) | 0.9 | |
| Mounting Kit | On-wall | |
| Color | White | |
| Relative humidity(%): | < 95 | |
| Operating Temperature(ºC): | -55~60 | |
| Applications: | Indoor | |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
