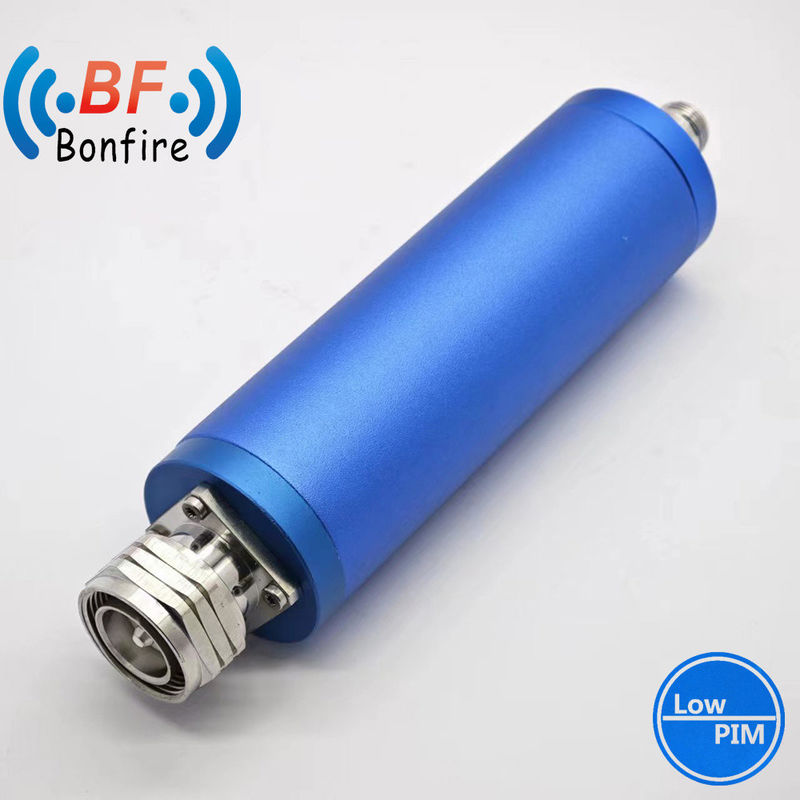

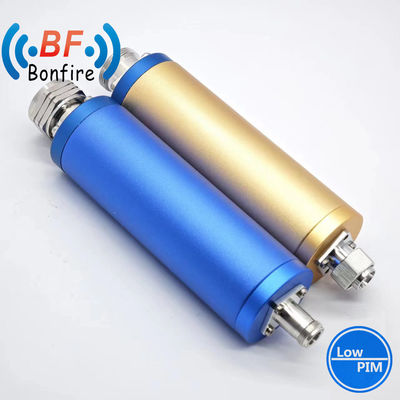

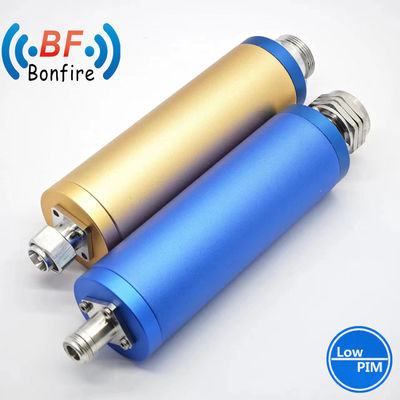

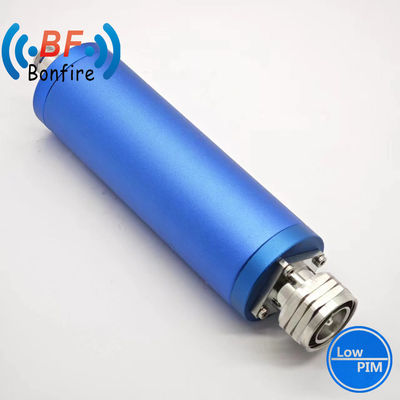

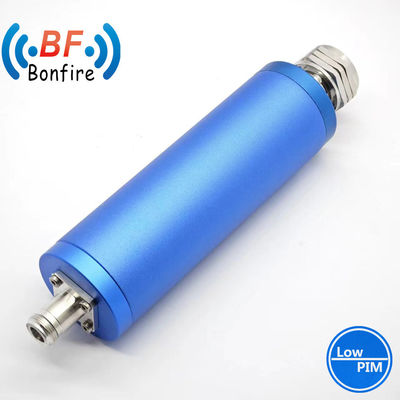

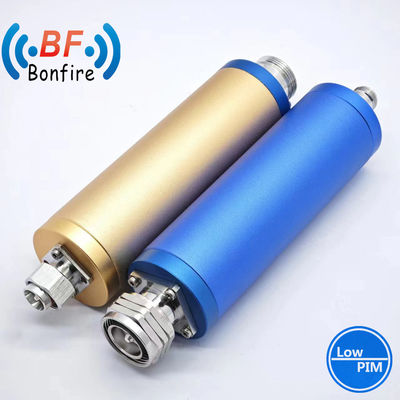

IP65 Rated RF Coaxial Cable Fixed Attenuator N Male to Female 100W 200W for Performance
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Color: | Grey/Red/Black/Customized | Capality: | Ibs/Das Overall Project Delivery Capability |
|---|---|---|---|
| Interface: | In: N-M/out: N-F | Application: | Indoor/Outdoor(IP65) |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 200000PCS/Year0 | Package Size: | 14.00cm * 8.00cm * 5.00cm |
| Package Gross Weight: | 0.450kg | ||
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | DC-3800 | ||||||
| VSWR | ≤ 1.25 | ||||||
| Attenuation(dB) | 3 | 5 | 6 | 10 | 15 | 20 | 30 |
| Accuracy(dB) | ±0.6 | ±0.6 | ±0.6 | ±0.8 | ±0.9 | ±1.1 | ±1.6 |
| Average Power(W) | 50 | ||||||
| Impedance(Ω) | 50 | ||||||
| RF Connector | In: N-M/Out: N-F | ||||||
| Color | Black | ||||||
| Relative humidity | 5%~95% | ||||||
| Operating Temperature(°C) | -35 ~ +75 | ||||||
| Applications | Indoor | ||||||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
