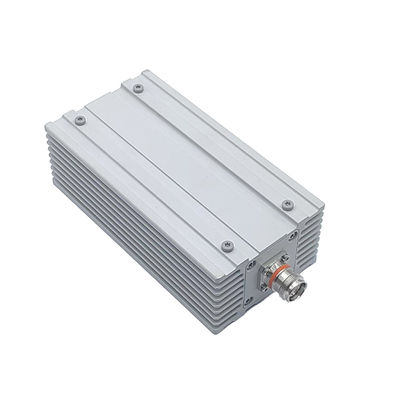

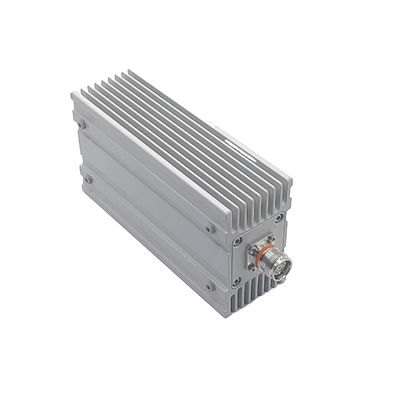

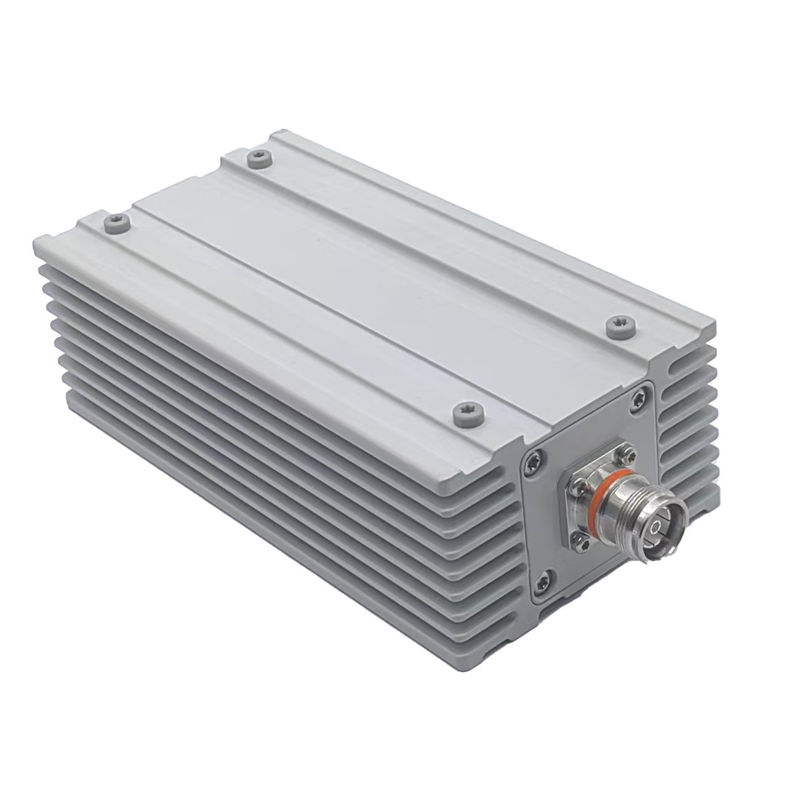

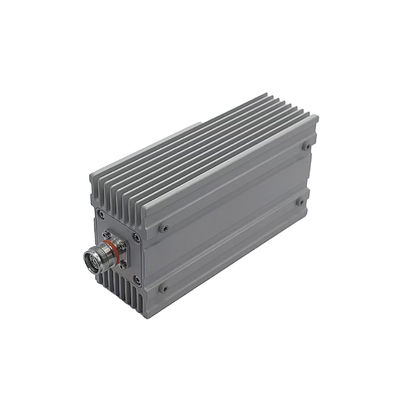

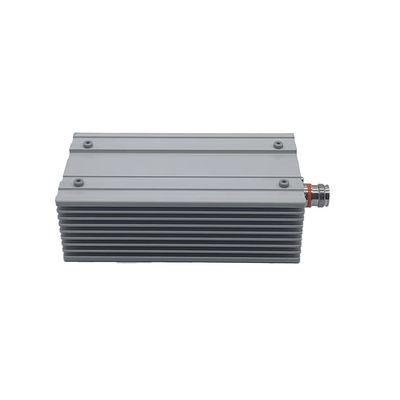

Package Size 10.00cm * 20.00cm * 10.00cm Low Pim Load 698-4000MHz 100W 4.3-10 F 5g Ibs Das
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | FZ-0740-1008 | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Application: | Indoor/Outdoor(IP65) |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 50000/Year | Package Size: | 10.00cm * 20.00cm * 10.00cm |
| Package Gross Weight: | 1.000kg | ||
Product Description
- Wide frequency band, wide coverage.
- PIM optimized design.
- Ideal for all kind of DAS applications.
- Low insertion loss.
- High power handling.
- Small size, Low weight.
- Good stability.
Specifications
| Frequency Range(MHz) | 608-4000 |
| VSWR | ≤ 1.25 |
| PIM3 (dBc@2*43dBm) | ≤ -160(1800&2600MHz) |
| Input Power(W) | 100 |
| Impedance(Ω) | 50 |
| RF Connector | 4.3-10 M/F,N-M/F,DIN-M/F |
| Color | Grey/Black |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -35 ~ +75 |
| Applications | Indoor/Outdoor(IP65) |
Want to Know more details about this product
