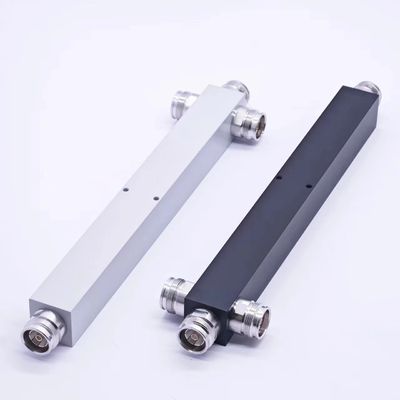

698-4200MHz Pim-160dbc 3 Way Power Splitter with N Type Connector See Below Data Table
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | GFQ-0740-X7701 | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Interface: | 4.3-10 F/DIN-F/N-F |
| Application: | Indoor/Outdoor(IP65) | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 22.00cm * 7.00cm * 4.00cm | Package Gross Weight: | 0.510kg |
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-4200 | ||
| Type | 2 - Way | 3 - Way | 4 - Way |
| Insertion Loss(dB) | ≤ 3.3 | ≤ 5.3 | 698-4000MHz≤ 6.5 |
| 4000-4200MHz≤ 6.7 | |||
| VSWR | ≤ 1.3 | ||
| PIM3 (dBc@2*43dBm) | ≤-160 | ||
| Input Power(W) | 300 | ||
| Impedance(Ω) | 50 | ||
| RF Connector | 4.3-10 F/DIN-F/N-F | ||
| Color | Black | ||
| Relative humidity | 5%~95% | ||
| Operating Temperature(°C) | -35 ~ +75 | ||
| Applications | Indoor/Outdoor(IP65) | ||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
