Package Gross Weight 1.000kg Hybrid Combiner 2 in 2 out 698-4000MHz Nex10 5G DAS/IBS
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | DQ-0740-227702 | Production: | OEM/ODM |
|---|---|---|---|
| Color: | Black/Customized | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 50000/Year |
| Package Size: | 22.00cm * 12.00cm * 8.00cm | Package Gross Weight: | 1.000kg |
Product Description

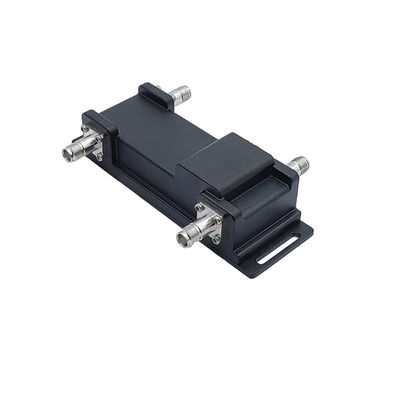

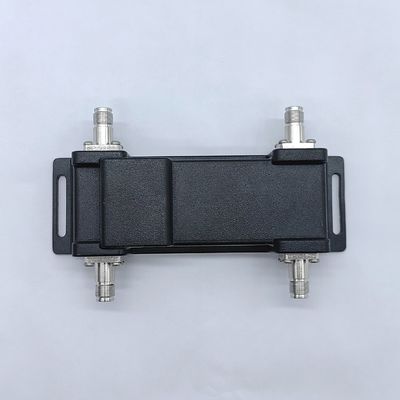

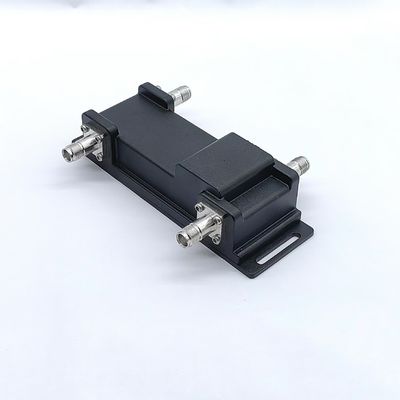

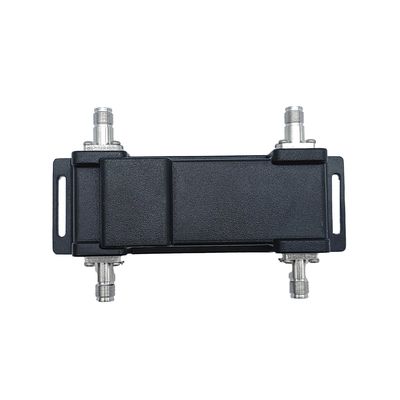

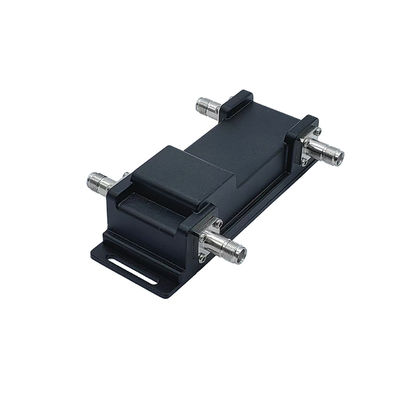

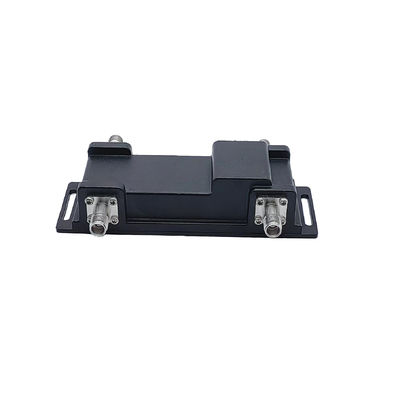

Hybrid Combiner 2 In 2 Out 698-4000MHz NEX10
PN.:DQ-0740-227702
Specifications
PN.:DQ-0740-227702
- Wide frequency band, wide coverage.
- PIM optimized design.
- Ideal for all kind of DAS applications.
- Low insertion loss.
- High power handling.
- Small size, Low weight.
- Good stability.
Specifications
| Frequency Range(MHz) | 698-3800 |
| VSWR | ≤ 1.35 |
| Insertion Loss(dB) | ≤3.8 |
| Isolation(dB) | ≥ 21 |
| PIM (dBc@2*43dBm) | ≤-160 |
| Input Power(W) | 300 |
| Impedance(Ω) | 50 |
| RF Connector | NEX 10 |
| Color | Black |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -35 ~ +75 |
| Applications | Indoor/Outdoor(IP65) |
