Hybrid Combiner 4 in 4 out 698-4000MHz Nex10 5g Das/Ibs DQ-0740-447702 for 5G Network
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | DQ- 0740-447702 | Color: | Black/Customized |
|---|---|---|---|
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 50000/Year | Package Size: | 22.00cm * 12.00cm * 8.00cm |
| Package Gross Weight: | 2.000kg | ||
Product Description

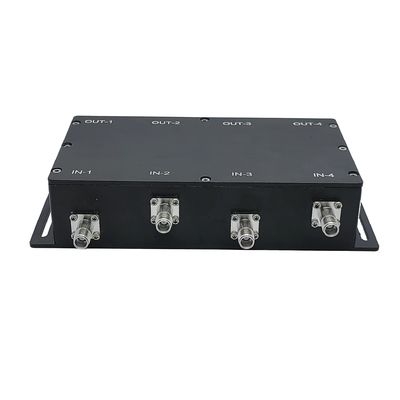

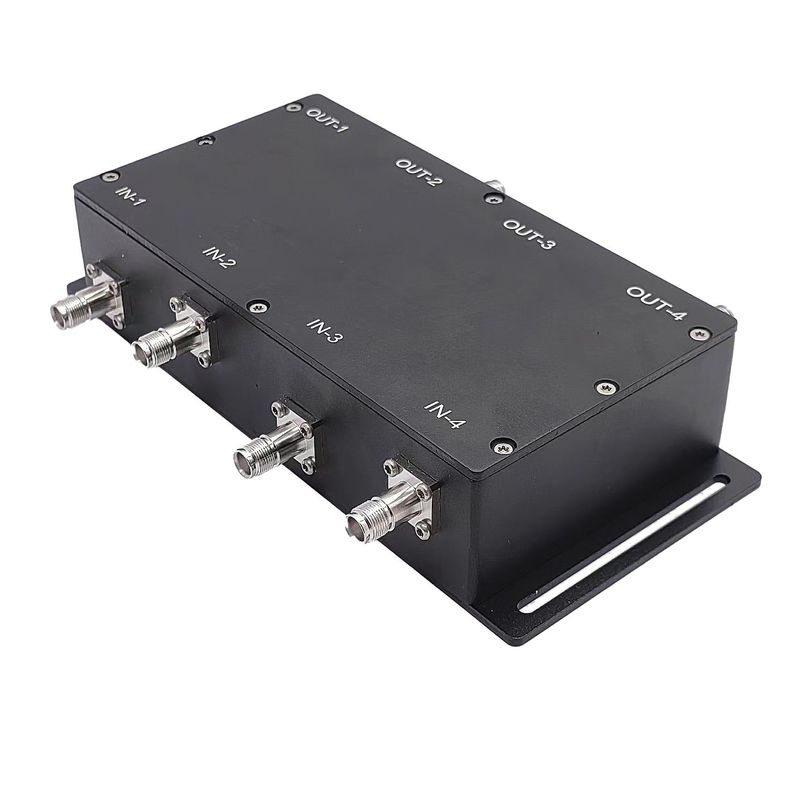

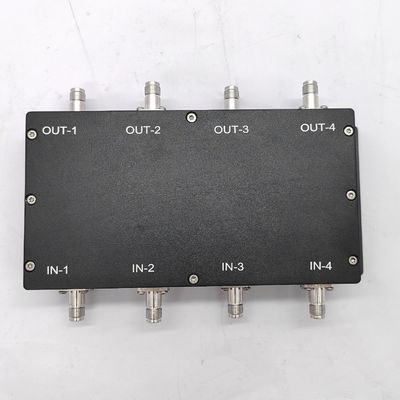

Hybrid Combiner 4 In 4 Out 698-4000MHz NEX10
PN.:DQ- 0740-447702
Specifications
PN.:DQ- 0740-447702
- Wide frequency band, wide coverage.
- PIM optimized design.
- Ideal for all kind of DAS applications.
- Low insertion loss.
- High power handling.
- Small size, Low weight.
- Good stability.
Specifications
| Frequency Range(MHz) | 698-3800 698-4000 |
| VSWR | ≤ 1.3 |
| Insertion Loss(dB) | ≤7.3 ≤7.5 |
| Isolation(dB) | ≤21 |
| PIM (dBc@2*43dBm) | ≤-160 |
| Input Power(W) | 300 |
| Impedance(Ω) | 50 |
| RF Connector | NEX 10 |
| Color | Black |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -35 ~ +75 |
| Applications | Indoor/Outdoor(IP65) |
