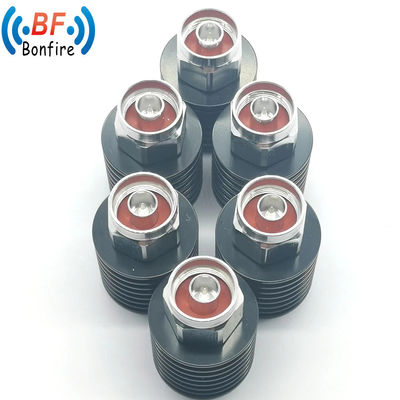

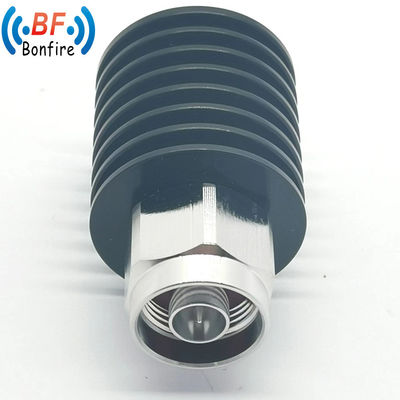

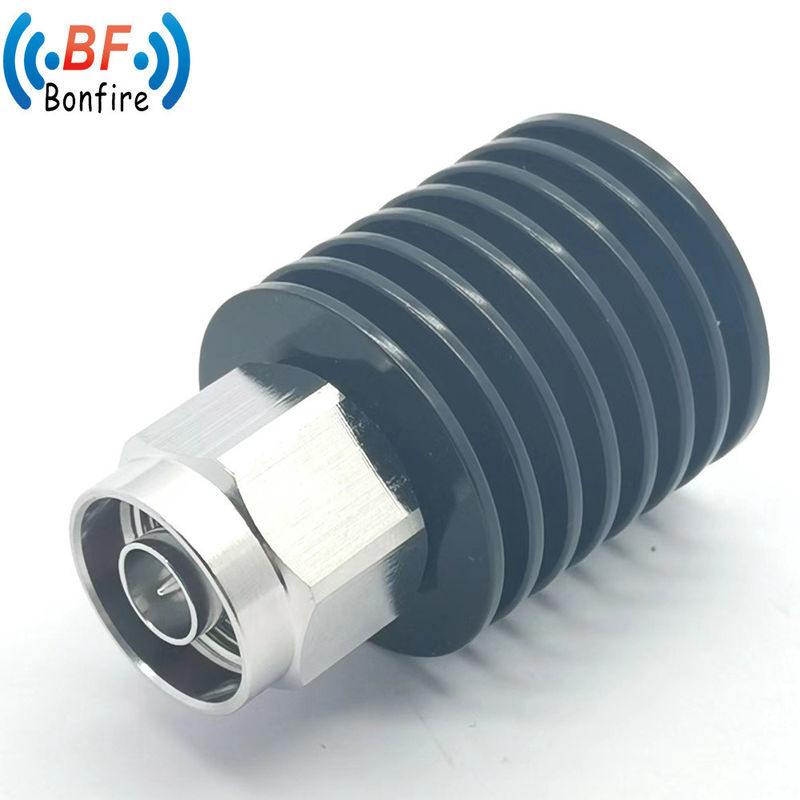

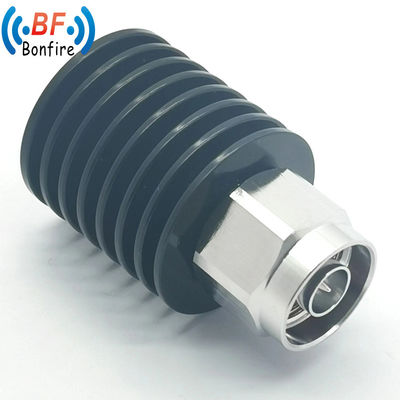

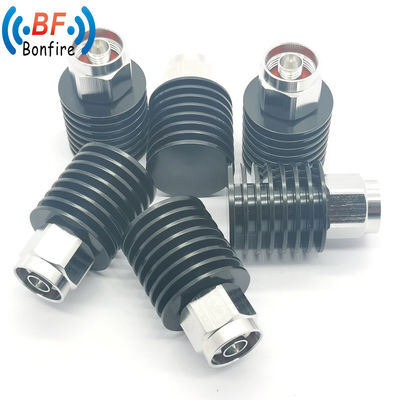

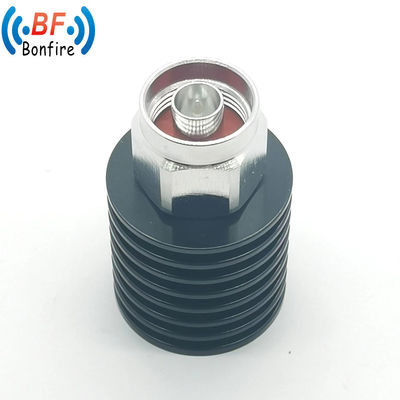

Performance 350-6000MHz RF Termination Dummy Load N Male Type for Measurement System
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | FZ-XXXXX | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Interface: | DIN-M/F 4.3-10 M/F N-M/F |
| Application: | Indoor/Outdoor(IP65) | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 19.00cm * 5.00cm * 5.00cm | Package Gross Weight: | 0.850kg |
Product Description
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 350-6000 |
| VSWR | ≤ 1.3 |
| PIM3 (dBc@2*43dBm) | ≤ -150/-155/-160 |
| Input Power(W) | 100 |
| Impedance(Ω) | 50 |
| RF Connector | 4.3-10 M/F,N-M/F,DIN-M/F |
| Color | Black |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -35 ~ +75 |
| Applications | Indoor/Outdoor(IP65) |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
