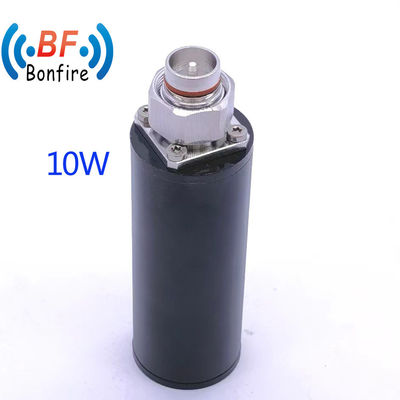

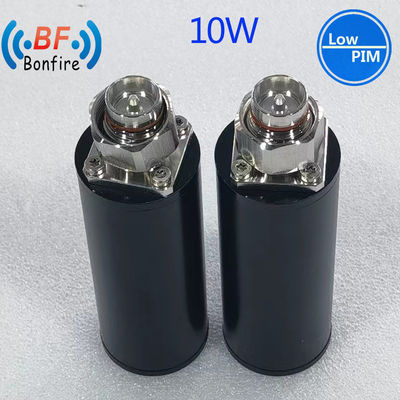

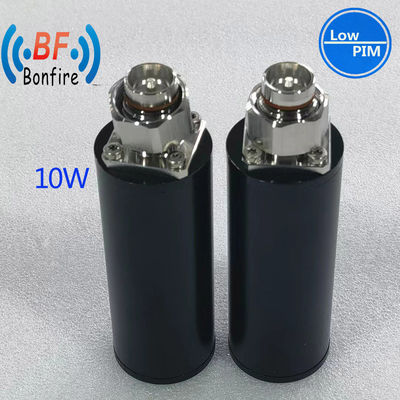

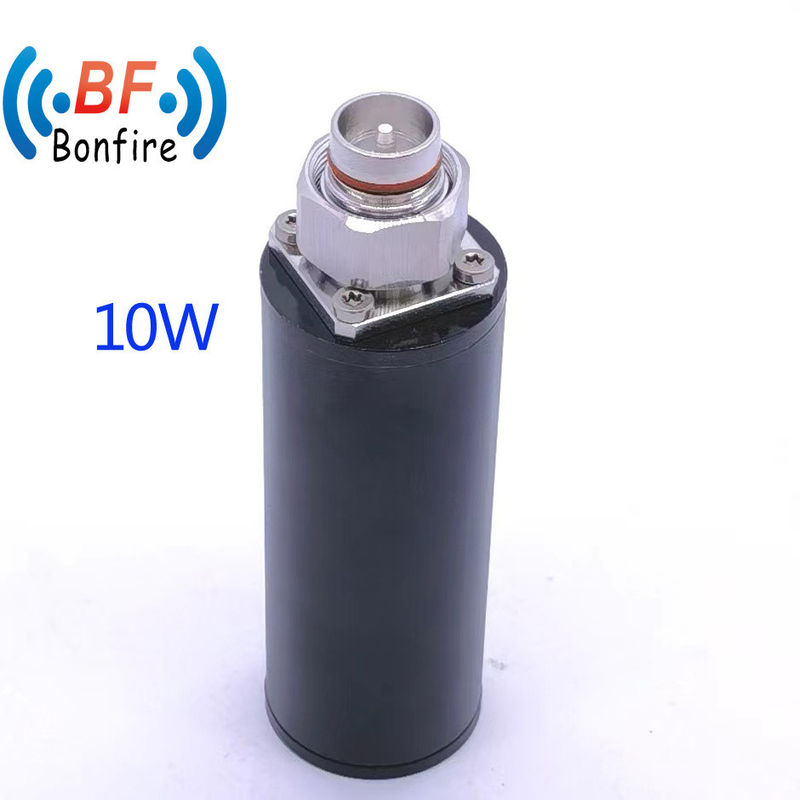

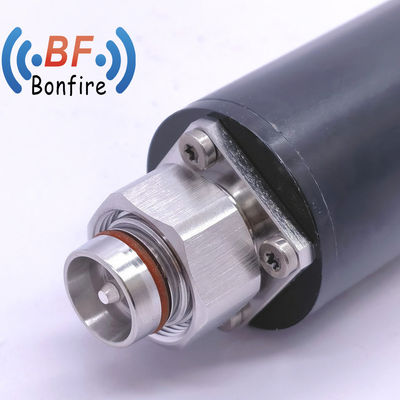

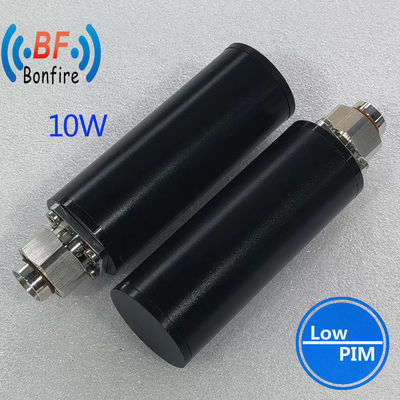

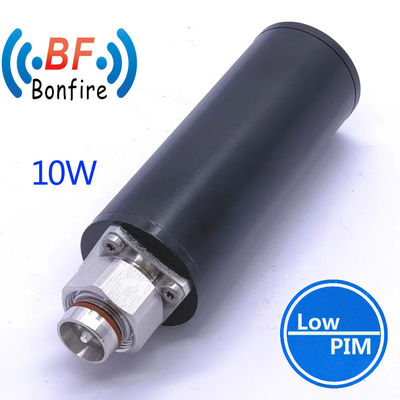

10W Indoor RF Low Pim Load Termination Load Dummy Load for Das Ibs See Below Data Table
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Color: | Grey/Red/Black/Customized | Capality: | Ibs/Das Overall Project Delivery Capability |
|---|---|---|---|
| Interface: | DIN-M/F 4.3-10 M/F N-M/F | Application: | Indoor/Outdoor(IP65) |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 11.50cm * 3.50cm * 3.50cm |
| Package Gross Weight: | 0.810kg | ||
Product Description
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Input Power(W) | 5 | 10 | 30 | 50 | ||||
| RF Connector | DIN-M | DIN-F | 4.3-10 M | 4.3-10 F | N-M | N-F | ||
| Frequency Range(MHz) | 600-4000 | |||||||
| VSWR | ≤ 1.25 | |||||||
| PIM3 (dBc@2*43dBm) | ≤ -153/-155/-160 | |||||||
| Input Power(W) | 5-50 | |||||||
| Impedance(Ω) | 50 | |||||||
| Color | Black | |||||||
| Relative humidity | 5%~95% | |||||||
| Operating Temperature(°C) | -35 ~ +75 | |||||||
| Applications | Indoor/Outdoor(IP65) | |||||||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
